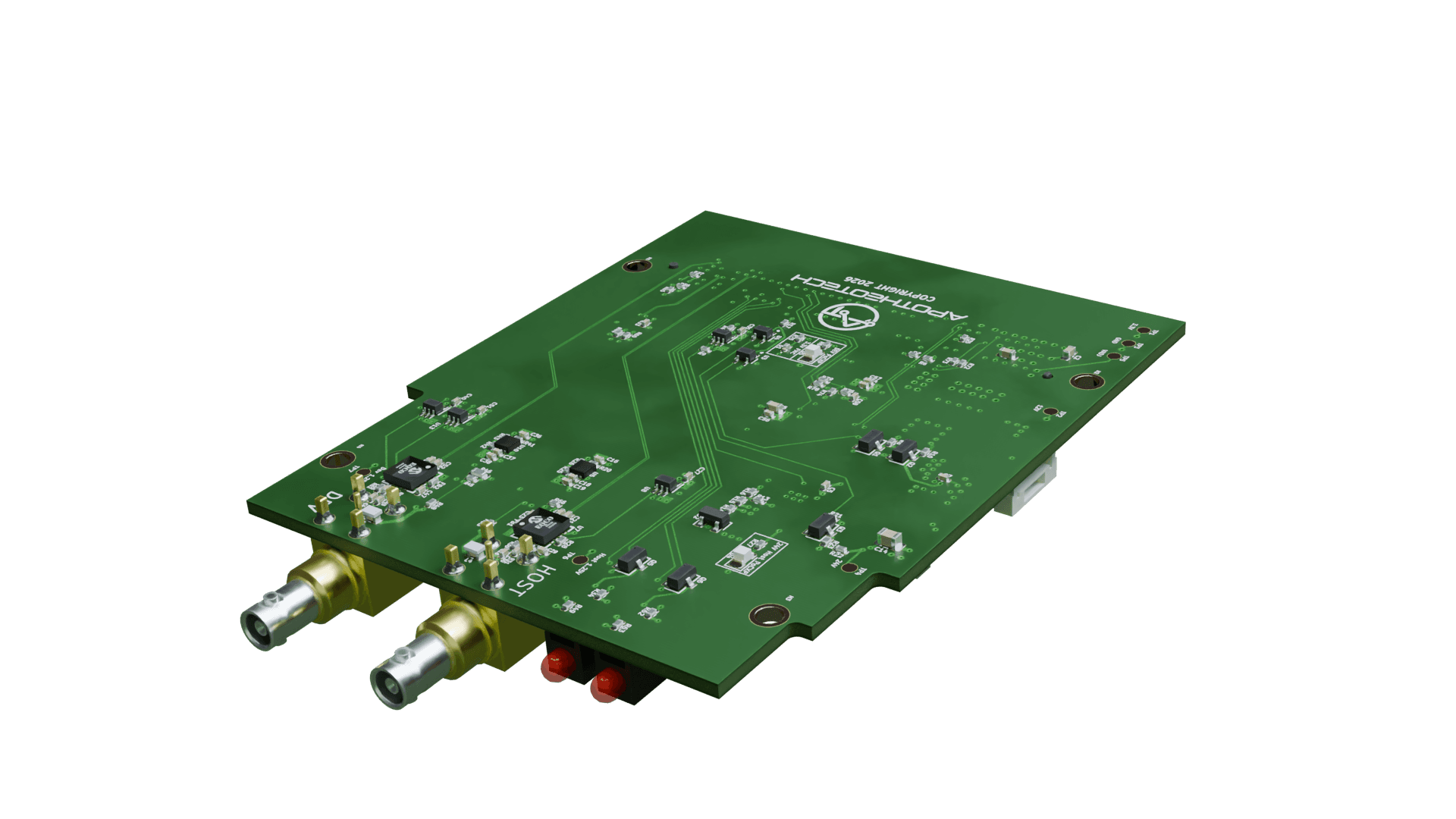

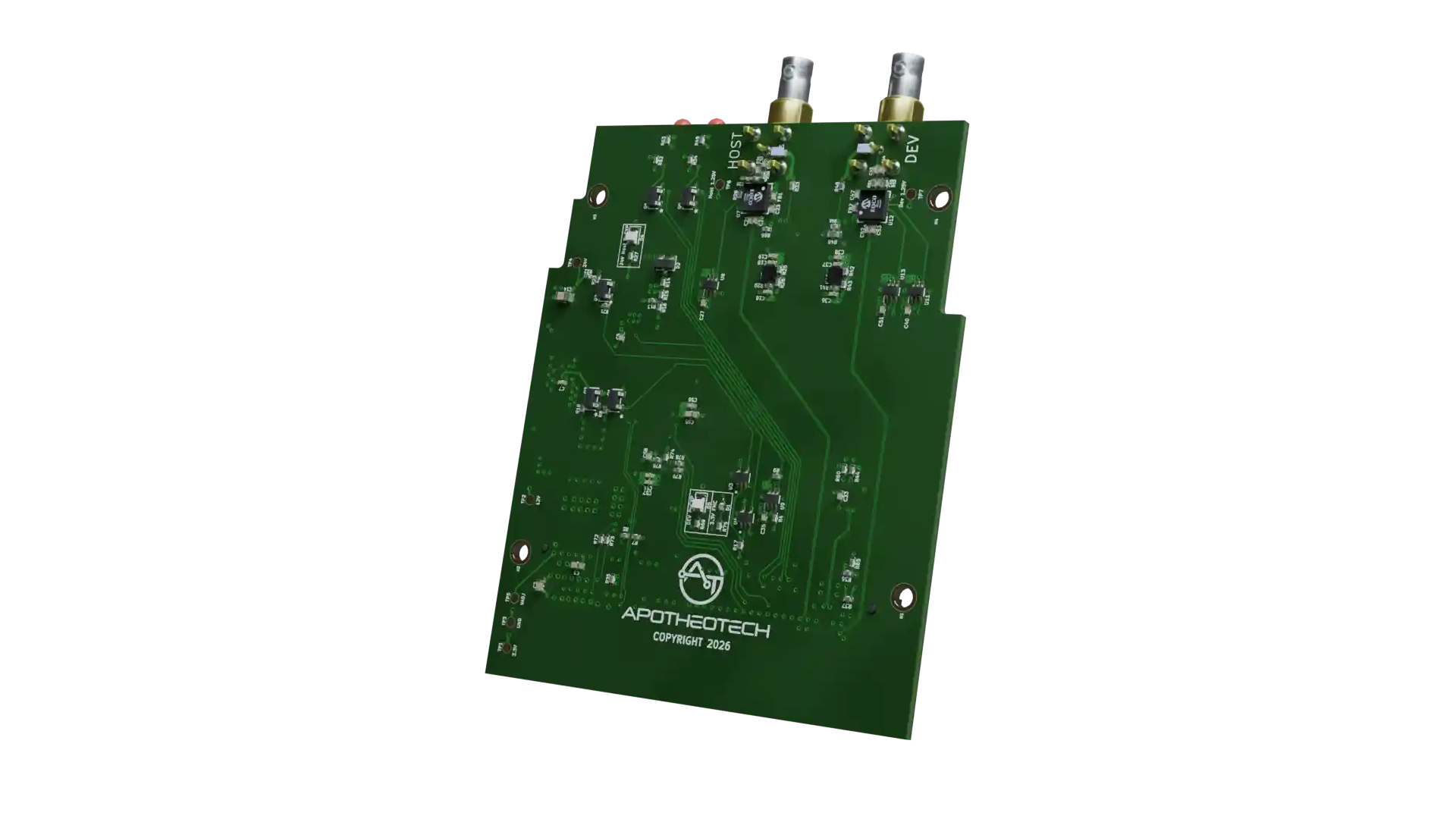

CoaXPress FMC
Single-lane CXP 2.1 host/device interface to 12.5 Gb/s
A single-lane TX/RX CoaXPress FMC card for high-speed camera applications. Power, data, and camera control travel over one 75 Ω coaxial cable, and the card pairs with the CoaXPress IP core for a complete, guaranteed-compatible solution.
| Interface | CoaXPress 2.1, 1× TX/RX |
| Data rate | to 12.5 Gb/s (CXP-12) |
| Connector | BNC 75 Ω |
| FMC type | VITA 57.1 LPC |
CoaXPress 2.1 protocol
Full compliance with high-speed data transmission and camera control over a single coaxial cable.
Single-cable solution
Power, data, and control signals over one coax, simplifying system cabling — and supporting longer runs than other high-speed interfaces.
FPGA integration
Designed for seamless FPGA integration with direct access to high-speed differential pairs through the FMC connector.
Professional grade
Industrial temperature range (-40 °C to +85 °C) and professional-grade components for demanding environments.
Hardware + IP core bundle
Purchase the FMC card and CoaXPress IP core together for guaranteed compatibility and bundle pricing.
- CoaXPress FMC hardware card
- CoaXPress IP core license
- Reference designs and examples
- Technical documentation
